| Brand Name : | SZ |
| Model Number : | 241 |
| Certification : | ISO9001:2008 |
| Price : | FOB USD 0.13-10 /pc |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | 10000 tons/year |
| Delivery Time : | within 60 days upon receipt of 30% deposit by T/T |

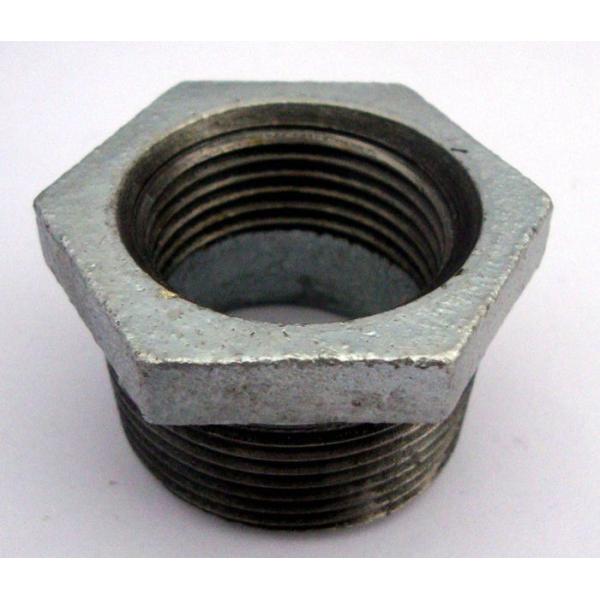

Galvanized Malleable Iron Pipe Fittings Bushing
SZ brand malleable iorn pipe fitting can be used in various pipelins to convey gas,water ,oil and so on.
we have been in this line more than 20 years.
our products are of rich assortments:banded,beaded,plain;galvanized and black,heavy type and light type.
SIZE:1/4-6"
Standard:BS STANDARD ,DIN STANDARD AMERICAN STANDARD
| Size | 1/8"-6" |
| Finishing | Hot Dipped Galvanized, Electro Galvanized, Epoxy, Black |
| Threads | DIN, BS, NPT, G Thread, Metric |
| Shape | Banded, Beaded, Plain |
| Ribs | with Rib or without Rib |
| Brand | SZ,FPF,APEX,O |
| Material | ISO 5922, ASTM A197 |
| Dimension | EN 10242, ASME B16.3, ISO 49, BS 143, SI 255, ES 888 |
| Pressure | Class 150, Class 300, PN10, PN16 |
| Usage | Convey Water, Oil, Gas, Steam and so on |
| Malleable Iron Materials | KTH 350~10, KTH 300~06, KTH 330-08 Black Heart |
| Thread Standard | ISO 7/1, NPT ANSI B1.20.1, DIN2999 |
| Mechanical Properties | Tensile Strength ≥ 330MPa Elongation ≥ 8% Hardness < 163 |
| Hydraulic Test | Working Pressure: Max 1.5MPa Test Pressure: Max 2.5MPa |
| Temperature: | -20 ~ 120 °c |
| Production Capacity | 60000 MT per Year |
| Lead Time | Within 30 Days if enquiry not more than 10x20' Container |
| Factory Certificate | ISO, SGS, ITS, BSI, Famous Brand Enterprise in Hebei, China |
| Main market | Middle East,Southeast-Asia,South Africa,North America,South America |
Packing :Boxes, Cartons, Pallets, Single plastic Bag per piece with barcode, Pre-cartons Normal Carton dimension: 480*310*200mm , 310*240*200mm, 150*150*300mm 10pcs per Plastic bag with Lable & barcode.
Delivery time:Within 60 Days if enquiry not more than 4x20' Container
